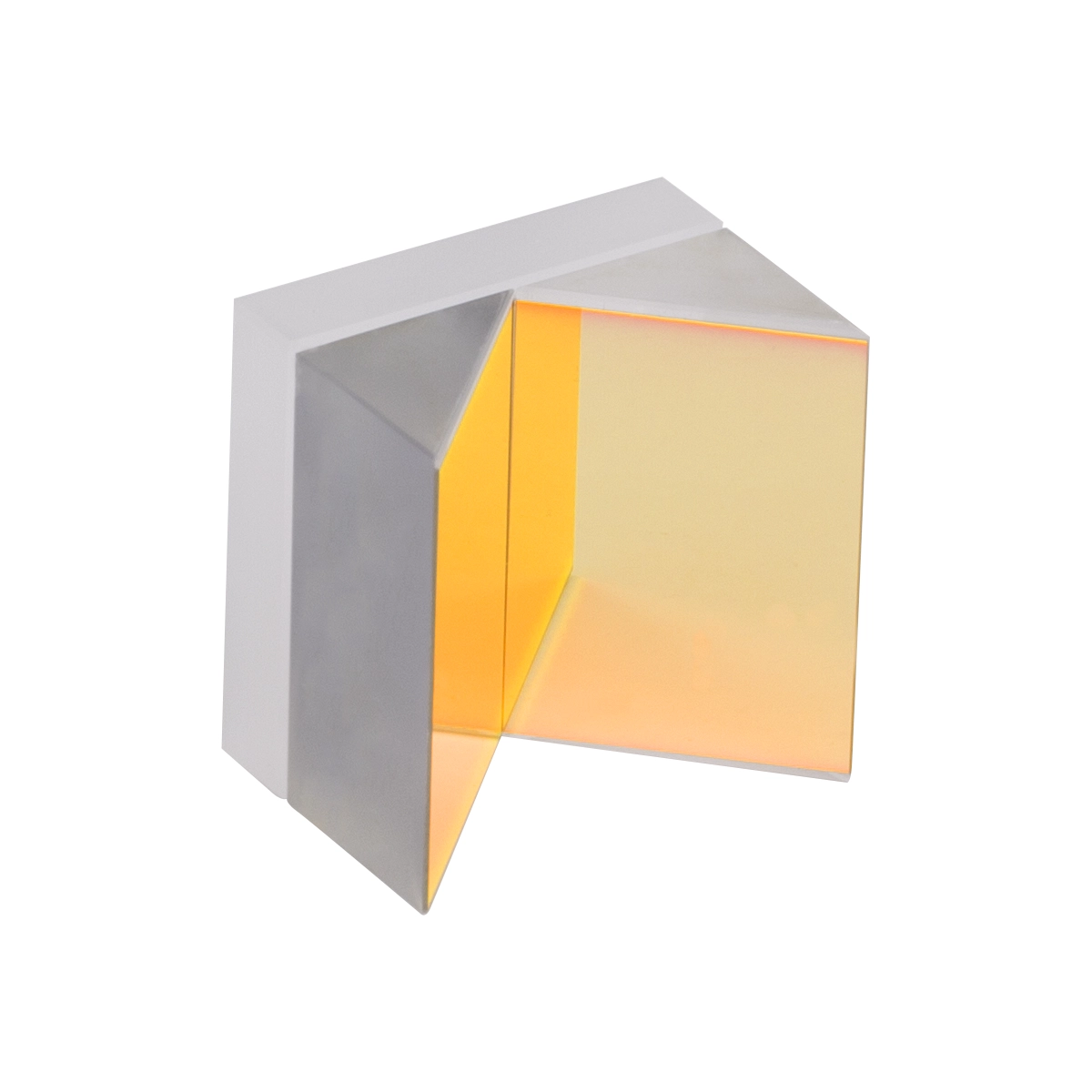

Thorlabs 中空屋脊棱镜反射镜，1英寸x1英寸，有保护层的金膜
Thorlabs 型号: HRS1015-M01
分类: 回射镜
HRS公共规格系列规格参数对比
| Surface Quality (Coated Surface) | 40-20 Scratch Dig |
|---|---|
| Surface Flatness | < λ/4 at 633 nm |
| Reflected Wavefront Error | < λ/2 at 633 nm |
| Substrate | UV Fused Silicaa |
| Dihedral Angle Accuracy | ±10 arcsec |
HRS尺寸规格系列规格参数对比
| Specifications | Square Unmounted Prism Mirrors | Round Mounted Prism Mirrors |
|---|---|---|
| Housing Dimensions | N/A | Ø1″ x 0.68″ |
| Substrate Dimensions | 1.00″ x 1.00″ (25.4 mm x 25.4 mm) | Ø0.89″ (22.6 mm) |
| (Two Places) | 1.00″ x 0.71″ (25.4 mm x 18.03 mm) | – |
| Dimensional Tolerance | ±0.2 mm | +0.000″ / -0.002″ (+0.00 mm / -0.05 mm)a |
| Clear Apertureb | >80% of Face Dimensions | >Ø18.0 mm |
HRS镀膜规格系列规格参数对比
| (Item # Suffix) | -F01 | -G01 | -P01 | -AG | -M01 | -M03 |
|---|---|---|---|---|---|---|
| Coating | UV Enhanced Aluminum | Protected Aluminum | Protected Silver | Ultrafast-Enhanced Silver | Protected Gold | Unprotected Golda |
| (Click for Plot)b | Ravg > 90% (250 to 450 nm) | Ravg > 90% (450 nm – 2 µm) | ||||
| Ravg > 95% (2 µm – 20 µm) | Ravg > 97% (450 nm – 2 µm) | |||||
| Ravg > 95% (2 µm – 20 µm) | Rs > 99.0% (750 nm – 1 µm) | |||||
| Rp > 98.5% (750 nm – 1 µm) | Ravg > 96% | |||||
| (800 nm – 20 µm) | Ravg > 97% | |||||
| Dispersion | – | S-Pol: < |40 fs2| | ||||
| – | ||||||
| Coated Face | 0° to 45° | 45° | 0° to 45° | |||
| (Pulsed) | 0.25 J/cm2 (266 nm, 10 ns, | |||||
| 10 Hz, Ø0.381 mm) | 0.3 J/cm2 (1064 nm, 10 ns, | |||||
| 10 Hz, Ø1.000 mm) | 0.225 J/cm2 (800 nm, 99 fs, | |||||
| 10 Hz, Ø1.010 mm) | 0.18 J/cm2 (800 nm, 52 fs FWHM, | |||||
| S-Pol, 1 Pulse)c | 2 J/cm2 (1064 nm, 10 ns, | |||||
| 10 Hz, Ø1.000 mm) | – | |||||
| (CW)d | 300 W/cm | |||||
| (10.6 µm, Ø0.339 mm) | 100 W/cm | |||||
| (10.6 µm, Ø0.339 mm) | 500 W/cm | |||||
| (10.6 µm, Ø0.339 mm) | – | 500 W/cm | ||||
| (10.6 µm, Ø0.339 mm) | – |
