描述

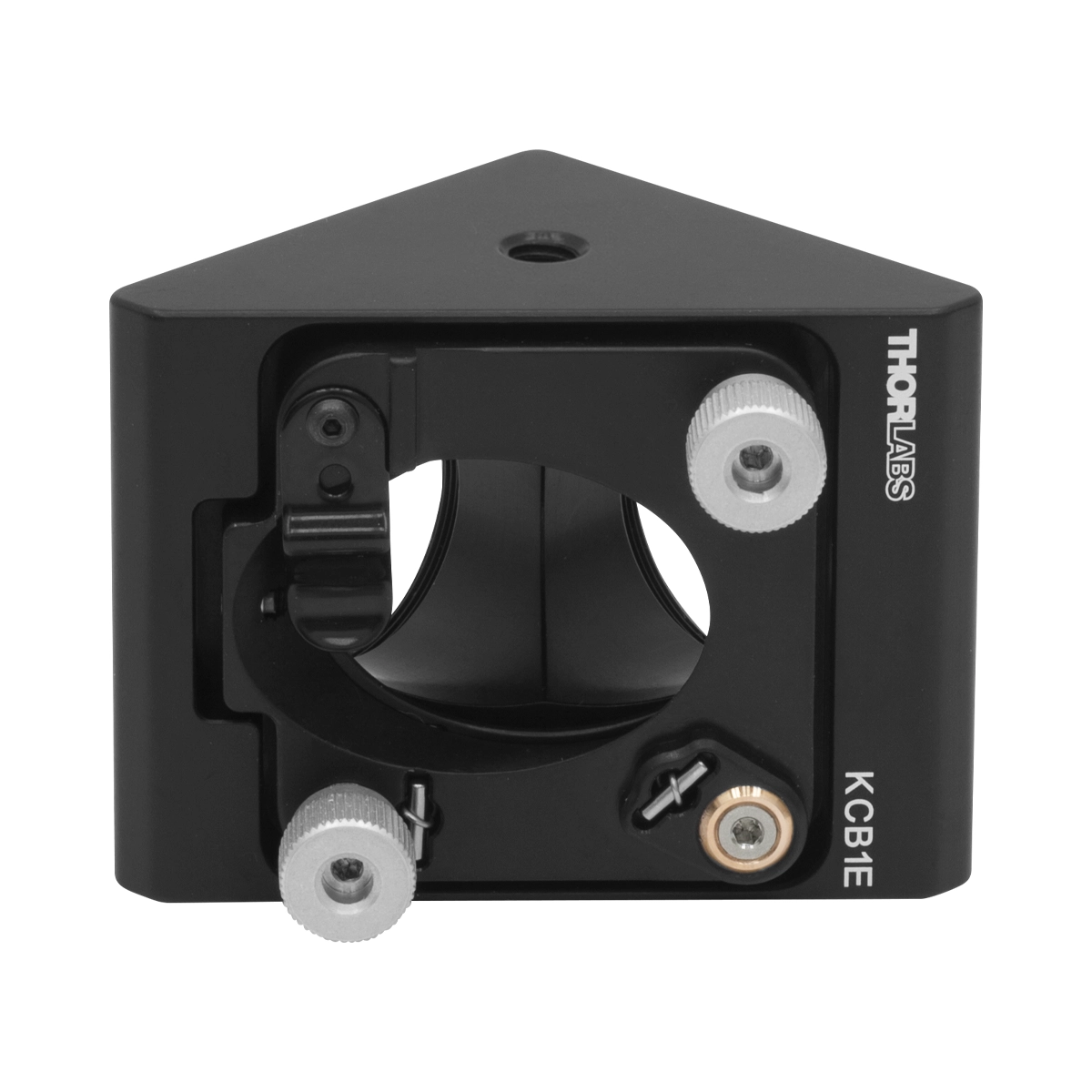

Thorlabs KCB1E(/M)直角安装架为固定在安装板中的1英寸(25.4 mm)椭圆光学元件提供俯仰和偏航调节，安装板的标称水平位置为45°角。端口配备SM1内螺纹(1.035″-40)孔和四个4-40螺纹孔，中心间距与30 mm笼式系统标准匹配。

运动学俯仰和偏航调节板采用100 TPI（每英寸螺纹数）调节螺丝驱动，提供7.6 mrad/rev的角度分辨率。其中两个调节器带可拆卸旋钮，第三个须用5/64″（2 mm）六角扳手或球头起子调节。虽然光学元件面名义上位于安装架中心，但第三个调节器可用于沿光轴方向微调位置。

采用尼龙顶紧螺丝和尼龙涂层弹簧夹，通过安装架的后部加载双孔，使用0.05″（1.3 mm）六角扳手或球头起子固定1英寸(25.4 mm)椭圆光学元件。后部加载设计确保即使安装架装有笼杆或透镜套筒，光学元件仍可触及。这些安装架设计用于6 mm厚的光学元件。

兼容30 mm笼式系统，使用Ø6 mm ER笼杆。八个4-40螺纹孔允许ER笼杆直接旋入安装架。入口和出口端口具有SM1内螺纹孔，可连接Ø1″透镜套筒。

KCB1E：一个8-32螺纹和一个1/4″-20螺纹（用于Ø1/2″和Ø1″接杆）

使用全部三个调节器进行Z轴平移：±0.12″（±3.0 mm）

Thorlabs提供与这些安装架兼容的介质膜和金属膜椭圆反射镜。

Overview of 30 mm Right-Angle Kinematic Cage Mounts

Item #	KCB1(/M)	KCB1C(/M)	KCB1E(/M)	KCB1EC(/M)	KCB1P5(/M)	KCB1PB(/M)
Compatible Optics	Ø1″ (Ø25.4 mm) Round Optics	Ø1″ (Ø25.4 mm) Round Optics	1″ (25.4 mm) Elliptical Optics	1″ (25.4 mm) Elliptical Optics	Ø1″ (Ø25.4 mm) Off-Axis Parabolic Mirrors	Ø1″ (25.4 mm) Off-Axis Parabolic Mirrors
Cage Rod Features	Tapped Holes	Smooth Bore Holes	Tapped Holes	Smooth Bore Holes	Tapped Holes	Smooth Bore Holes
Post Mounting	One 8-32 (M4) Tap & One 1/4″-20 (M6) Tap	One 8-32 (M4) Tap & One 1/4″-20 (M6) Tap	One 8-32 (M4) Tap & One 1/4″-20 (M6) Tap	One 8-32 (M4) Tap & One 1/4″-20 (M6) Tap	Two 1/4″-20 (M6) Taps	Two 1/4″-20 (M6) Taps

KCB1E Specifications

Property	Value
Part Number	KCB1E
Description	Right-Angle Kinematic Elliptical Mirror Mount with Tapped Cage Rod Holes, 30 mm Cage System and SM1 Compatible, 8-32 and 1/4″-20 Mounting Holes
Compatible Optic Size	1″ (25.4 mm) Elliptical
Mounting Angle	45° to optical axis
Kinematic Adjustment Range	±4° pitch and yaw
Z-Axis Translation	±0.12″ (±3.0 mm)
Angular Resolution	7.6 mrad/rev (100 TPI adjusters)
Optic Thickness (Design)	6 mm
Cage Rod Holes	Eight 4-40 tapped holes
Port Threading	SM1 (1.035″-40)
Post Mounting (Imperial)	One 8-32 tap, One 1/4″-20 tap
Post Mounting (Metric Variant KCB1E/M)	One M4 tap, One M6 tap
Cage Compatibility	30 mm (Ø6 mm ER cage rods)
Package Weight	0.31 lbs
Availability	Today
RoHS	Compliant
Warranty	Lifetime
