Description

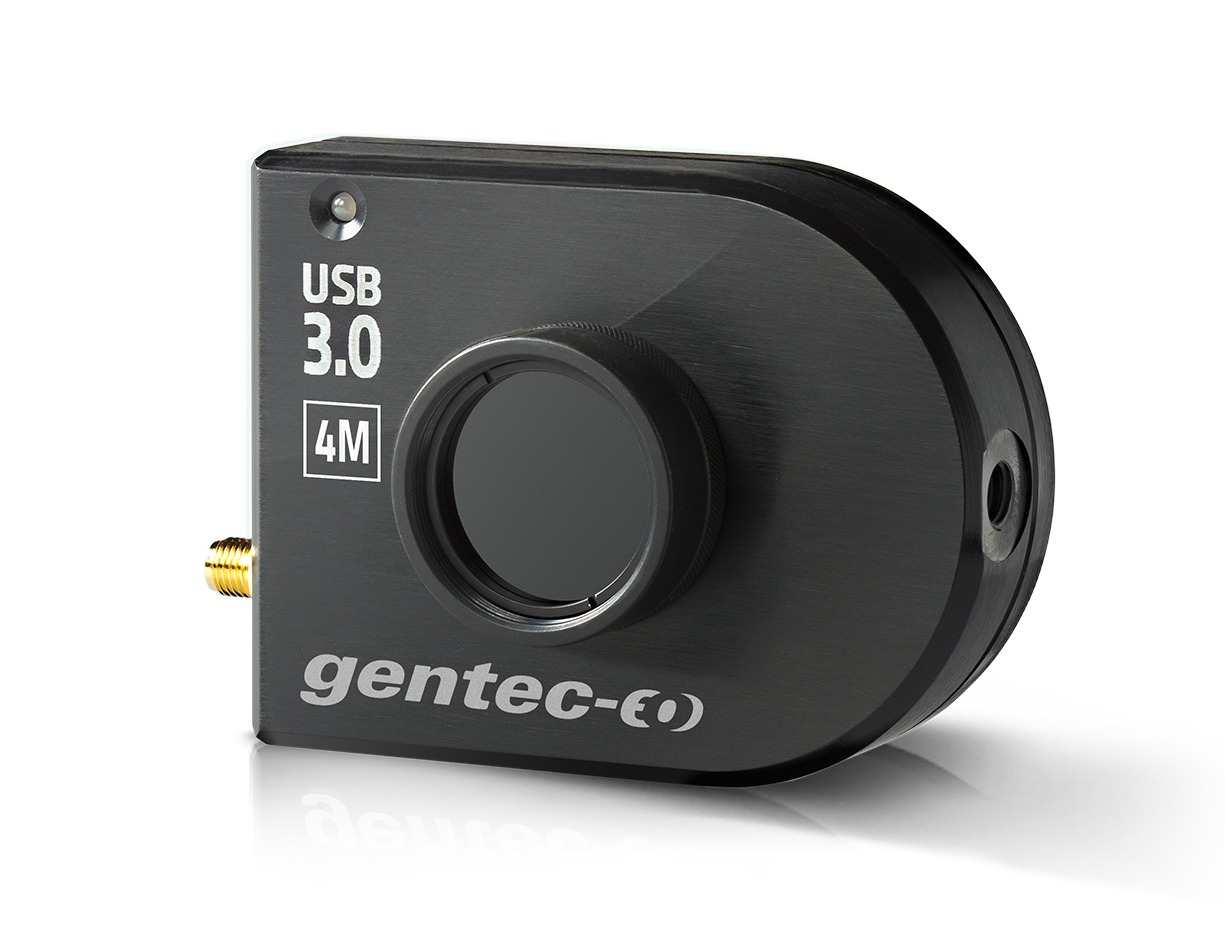

了解我们的 BEAMAGE-4M-IR laser beam profiler for beam diagnostics. Gentec-EO 制造 高精度 激光光束测量设备.
核心特点：
- 高精度测量，符合ISO国际标准
- 稳定性好，可靠性高
- 操作简便，界面友好
- 加拿大原厂制造，品质保证
技术规格：
| 参数名称 | 参数值 |
|---|---|
| USB 3.0实现最快传输速率 | Up to 10X faster than regular USB 2.0 connections (also USB 2.0 compatible) |
| 高分辨率 | For accurate profile measurements of very small beams: 5.5µm pixel pitch for the BEAMAGE-4M |
| 大孔径 | 11.3 x 11.3 mm for the BEAMAGE-4M and BEAMAGE-4M-IR20.5 x 20.5 mm for the BEAMAGE-4M-FOCUS |
| Available with IR Coating | The BEAMAGE-4M-IR cameras have a special phosphor coating for IR wavelengths (1495-1595 nm) |
| 符合ISO标准 | D4σ definition of diameter, centroid, ellipticity and orientation are ISO 11146:2004 and 11146:2005 compliant |
| 直观软件界面 | Easy to navigate interface, with many display and control features: |
| 外部触发 | To synchronize the camera with a pulsed laser |
| BA16-60S | Optical attenuator, 16 mm Ø, up to 500 W. |
| BA16K-150S-H5-D0 | Optical attenuator, 16 mm Ø, up to 150 W. Includes UP19K-15S-H5-D0. |
| BA16K-500F-H9-D0 | Optical attenuator, 16 mm Ø, up to 500 W. Includes UP19K-110F-H9-D0. |
| 中性密度滤光片 | ND filter for BEAMAGE camera. |
| BA32-1KW | Optical attenuator, 32 mm Ø, up to 1000 W. |
| B3-USB | Replacement USB3.0 cable for the Beamage cameras. |
| USBA-C | Adaptor from USB-A to USB-C, for INTEGRA (USB) and BEAMAGE series. |
| 符合性 | Compliance certificate |
| SMA-BNC | SMA-BNC adaptor |
| 运输箱 | 运输箱 |
| B3-KEY | USB drive containing the software and drivers |
| ND4.0 | ND 4.0 filter in SM1-threaded stackable holder. |
| B3-SM1 | C-mount to SM1 adaptor for BEAMAGE-4M. |
| 光谱范围 | 1495 – 1595 nm |
| Minimum measurable beam | 70 μm |
| 传感器技术 | CMOS (with Phosphor Coating) |
| 像素数量 | 4.2 MPixels |
| 水平×垂直 | 2048 x 2048 |
| 光束直径定义 | D4σ (ISO compliant)1/e2 along crosshairs (13.5%)FWHM along crosshairs (50%)Custom (%) |
| 快门类型 | Global |
| 帧率 | 6.2 fps @ 4.2 MPixels (Full Frame) |
| ADC电平 | 12 bit (default) / 10 bit (option) |
| RMS噪声 | 1000:1 (60 dB) |
| 最大功率密度1 | 10 W/cm² |
| 最大能量密度2 | 100 mJ/cm² |
| 最大功率3 | 1 W |
| 尺寸 | 61H x 81.1W x 19.7D mm |
| 重量 | 0.14 kg |
| 像素尺寸 | 5.5 μm |
| 包含滤光片 | ND4 |
| 有效面积 | 11.3 x11.3 mm |
| 吸收曲线 | Absorption curves for beam profilers |
| 用户手册 | USB 3.0 beam profiling cameras |
| 软件、驱动和固件 | Software, drivers and firmware for BEAMAGE and BEAMAGE-M2. |
| LabVIEW示例程序(32位) | LabVIEW VI examples (32-bit) for BEAMAGE series. |
| LabVIEW示例程序(64位) | LabVIEW VI examples (64-bit) for BEAMAGE series. |
| .NET框架示例 | .NET compatible example for integration of BEAMAGE beam profiling cameras through a software pipeline. Note that the PC-BEAMAGE software must also be installed and running. |
| 测量类型 | : 功率能量光束分析 |
| 光束尺寸 | 光束形状 |
| 激光类型 | 激光模式 |
| 光束轮廓 | 光束分布 |
资料下载：
- BEAMAGE 4M IR Product specifications Gentec EO（PDF）
- SK 9304F Assemblage Beamage 3.0（PDF）
- 3D模型文件（STEP）
- Curves_Profiling_2025_V1.0_EN（PDF）
- 103680 Manual BEAMAGE Rev 32（PDF）
- an_202198_manual_m2（PDF）
- AN_202182B_UV_Converter（PDF）
- an_202190_ir_adaptor_vs_beamage ir（PDF）
- Gentec EO_Beam_Profiling_Overview_2024_V1.0_EN（PDF）
- simulatedbeam.zip（FILE）
- 108154-Beamage_Installer-V1.08.10.exe（FILE）
- PC-Beamage_Labview_Example_32_bits_V1.02.12.zip（FILE）
- PC-Beamage_Labview_Example_64_bits_V1.02.12.zip（FILE）
- NamedPipeClient_V1.00.10.zip（FILE）
